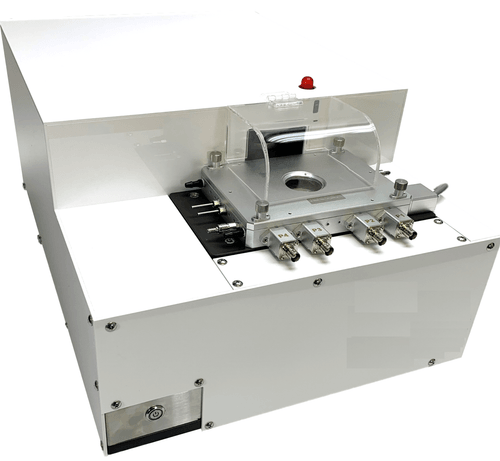

Variable temperature type (HAll8300 series )
Features:
‧ Ohmic contact check
‧ Large concentration and resistivity range
‧ Compact cart hardware design
‧ Easy to hands-on operation software
‧ Compact and easy-to-use desktop system
8300 Families:
* 8300 for 77k-423k (other temperature on request)
* 8300adv for 77k-773k
‧ Ohmic contact check
‧ Large concentration and resistivity range
‧ Compact cart hardware design
‧ Easy to hands-on operation software
‧ Compact and easy-to-use desktop system
8300 Families:
* 8300 for 77k-423k (other temperature on request)
* 8300adv for 77k-773k
More Details

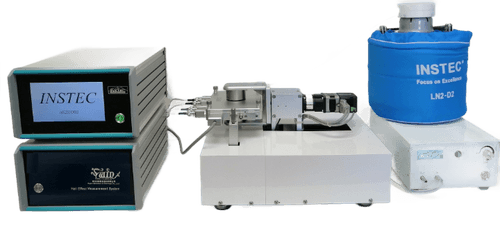

| Hall measurement System with variable temperature |
| * Sample size: 5x5mm ~ 20x20mm |
| * Measurement Temperature: 77K~423K (8300) / 77K~773K(8300adv) |
| * Magnet Flux Density: 0.6Tesla |
| * Magnet Stability: 2% over 1 years |
| * Uniformity: +/- 1% over 30mm diameter from center |
| * Pole Gap: 20 mm |
| * Hall voltage range: 1uV to 12V |
| * Source current 1nA to 20mA |
| * Resistivity (Ohm-cm): 10-5 to 107 |
| * Mobility: (cm2/Volt-sec) 1 ~ 107 |
| * Carrier Concentration (cm-3): 107 ~ 1021 |
| * Operation Controller included |
| * Compact cart design |
